HEPA Filtered Pass Thru
The HEPA Filtered Pass Thru has been added to our standard line of pass thrus for enhanced particle control. This unit has been designed with a top mounted blower system that cleans products with 100 f.p.m. of 99.99% of HEPA filtered air prior to clean room entry. Standard units draw air from clean room side of pass thru and exhaust out of vents on the dirty side. This airflow pattern prolongs the life of the HEPA and keeps contaminates from entering the clean room. We believe that this product produces the best insurance against contaminated materials being introduced into your clean room.
Features
- Constructed of 3/4″ thick high-density melamine board covered with high pressure white plastic laminate.
- Doors are 3/8″ thick clear acrylic with polished edges and 1/4 turn “t” handles and sealed with EPDM gasketing.
- Mechanical interlock safety feature that allows only one door to open at a time, preventing cross contamination.
- HEPA filter 99.99% efficient on 0.3 microns and larger.
- Pre-filtered air intake grille.
- 125-320 c.f.m. blower motor.
- Variable speed control.
- Mounting kit.
- Junction box for electrical hook up.
Specifications
Options
1/4″ thick Safety Glass
1/4″ thick Amber Acrylic
1/4″ thick Chemical Resistant Acrylic
Electrical Interlock System
Adjustable Shelving
UV Light Fixture
Gas Purge
Key Door Lock Handles
Support Gussets
Polypropylene Laminated Interior
S.S. Laminated Interior
Aluminum Laminated Interior
Stainless Steel Construction
1/4″ thick Amber Acrylic
1/4″ thick Chemical Resistant Acrylic
Electrical Interlock System
Adjustable Shelving
UV Light Fixture
Gas Purge
Key Door Lock Handles
Support Gussets
Polypropylene Laminated Interior
S.S. Laminated Interior
Aluminum Laminated Interior
Stainless Steel Construction
Required Cleanliness Class/ISO Certification
10,000/7
10/4
100,000/8
100/5
1000/6
10/4
100,000/8
100/5
1000/6

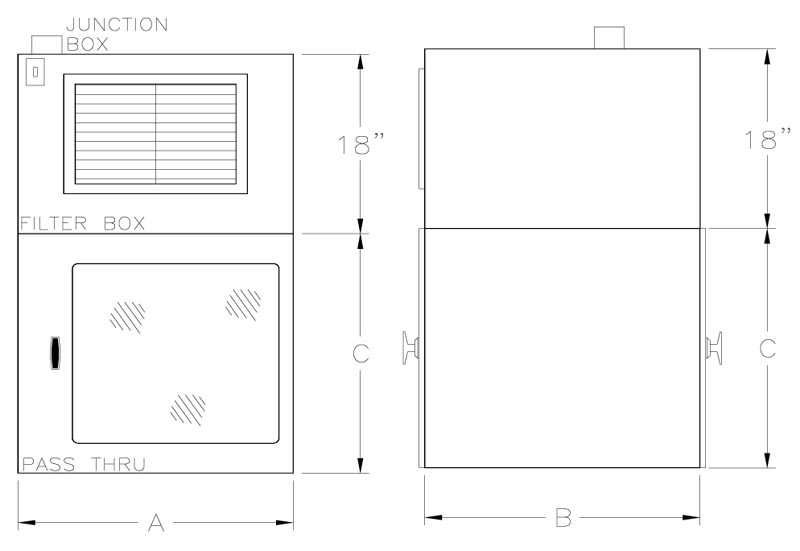

Models
Item #
Inside Dimension A
Inside Dimension B
Inside Dimension C
Outside Dimension A
Outside Dimension B
Outside Dimension C
SSPT121212
12 in
12 in
12 in
12 1/8 in
13 in
12 1/8 in
SSPT121218
12 in
12 in
18 in
12 1/8 in
13 in
18 1/8 in
SSPT141418
14 in
14 in
18 in
14 1/8 in
15 in
18 1/8 in
SSPT181818
18 in
18 in
18 in
18 1/8 in
19 in
18 1/8 in
SSPT242424
24 in
24 in
24 in
24 1/8 in
25 in
24 1/8 in
SSPT243024
24 in
30 in
24 in
24 1/8 in
31 in
24 1/8 in
SSPT303030
30 in
30 in
30 in
30 1/8 in
31 in
30 1/8 in
SSPT303036
30 in
30 in
36 in
30 1/8 in
31 in
36 1/8 in
SSPT363636
36 in
36 in
36 in
36 1/8 in
37 in
36 1/8 in
